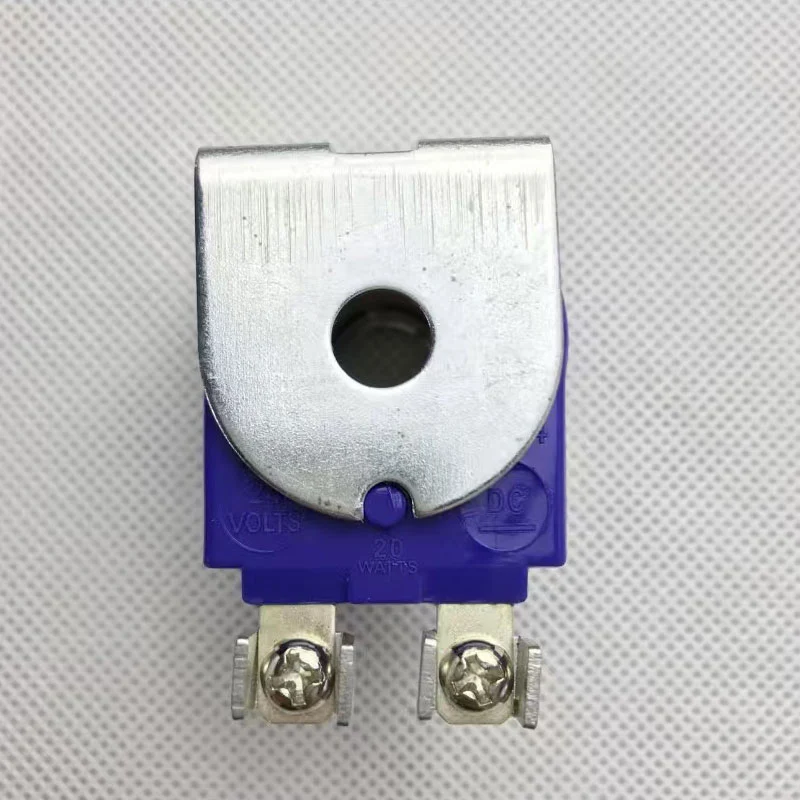

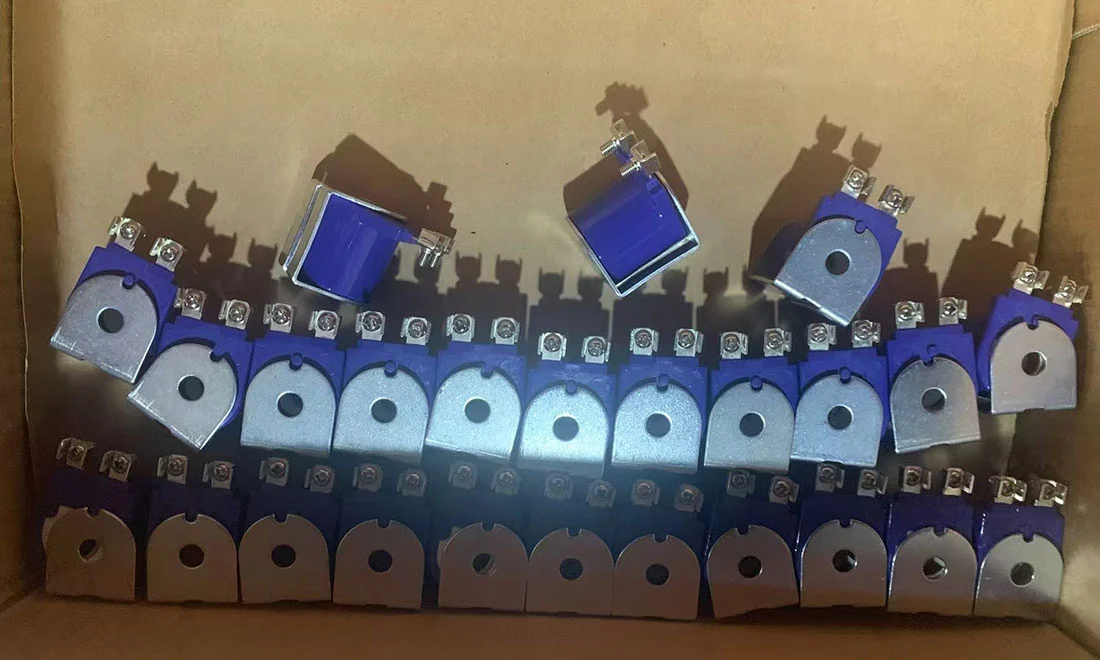

RCA3D2 gubernator CYMBALON

RCA3D2 gubernator CYMBALE est quoque ut Q series solenoid luto, in gubernator valvae sit idoneam omnibus goyen genus pulsus valvulae, RCA3D series pulsum valvulae et pulsum valvae buxum.

Mitte Inquisitionem

depictio producti

Application scope

RCA3D2 gubernator CYMBALON est idoneam ad omnes goyen Pneumaticae control pulsus valvulae et compatible cum variis pulsu pulvis remotionem systems in goyen environments. Hoc ensures quod potest operari stabiliter in dura conditionibus.

RCA3D2 Pilot CYMBALON INSTALLATION instructiones

I. Installation foramen requisita: EXERCITATIO installation foramina cum diameter ф19.3 - 19.4mm in installation laminam de gubernator valvae.

II. Installation laminam crassitudine, in crassitudine installation ferro laminam excedere 1.5mm ut installation vires.

III. Signantes et ecclesiam:

A. Ante tensis nucis, ut O-anulum est recte installed ad praestare signantes perficientur.

B.it commendatur convenire electro coil onto gubernator valvae antea installing gubernator valvae ut amplio installation efficientiam.

IV. Voltage requisita, ut normalis operationem de pulsu valvae, initus intentione solenoidam valvae esse servetur in range of -10% ad + XV% de caelo intentione.

RCA3D2 Pilot CYMBALON Material Specifications

Partium	Materia
Valvae corpus	Die-Cast Aluminium Alloy
Ventula	CCCIV Stainless ferro
Armature	430fr immaculatam ferro
Annulus	Nitrile (Nitrile Flexilis)
Nux	Galvanized Carbon Steel
Screw	CCCII Stainless ferro
Fibula	Carbon Steel (organice pressed)

Operating parametri

• commendatur Pulsus Width: 50-500 MS

• commendatur Pulse Intervallum: I minute vel

Product euismod parametri

Euismod Indicatores	Details Parameter
Influunt coefficientem	CV = 0,32
Maximum opus pressura	DCCCLX KPA
Minimum opus pressura	0 kpa
Minimum opus temperatus	-40 ℃
Maximum opus temperatus	LXXXII ℃
Applicabiles Gas	Medium Aeris vel inert Gas

Product Ordering Model Details

Model Portus Size	Filum genus	Exhauriunt portum magnitudine
Rca3d0	1/8 "NPT	3.2mm
Rca3d1	1/8 "bspp	3.2mm

Operating parametri

Model Specifications: Placere referuntur ad K, parametri in Q-genus electromagnetic Coil notitia sheet et eligere specifica exemplar fundatur in voltage requisita.

Exemplum:

• RCA3D0 - CCC = 1/8 "NPT litus Portus, Voltage CC / 240vac, cum Laudate Terminal obstructionum.

• RCA3D1 - CCCXXXVI = 1/8 "Bspp Inlet portum, voltage 24VDC, cum stupra Terminal Wiring (idoneam ad electromagnetic conventus boxes).

Sustentationem partes

• K0380: Includes nitrile O-anulus signacula, armature, fontes, et Pushrod Conventus.

• K0384: Includes Viton Material Sigilat et omnes components a K0380.

• Weight: RCA3D0, RCA3D1 (Sine Coil) 0.174 kg

Rca3d2 Pilot Valve
