G353A045 Longinquus Nauclerus Solenoid Valve

G353A045 gubernator remotus valvae solenoidalis (1-1/2" DN40), 2/2 NC, altus fluxus Cv 53,18, 0-8 vectis, pro pulsus jet pulvis collectores., vita longa, perficientur certa.

Model:G353A045

Mitte Inquisitionem

depictio producti

Product Introduction

Valvae G353A045 est ex ASCO 353 Series quae in contraposito pulvere collectionis et baghouse purgationis systematum adhibetur. Aluminium corpus lentum, orificium 52mm, et nexum remotum gubernatoris (1/4") habet ad regimen aeris subtilis, summus fluens.

Key Features

· Gubernator remotus Operatio: stabilis, certa effectus etiam in condicionibus pressuris efficit.

· Capacitas Excelsa: Cv 53.18 (Kv 46.00) ad purgandum sacculum validum et efficax.

· Longa servitii Vita: Premium TPC-ET/NBR diaphragma pro 1,000,000+ circuitus aestimatur.

· Constructio dura: Corrosio-repugnans aluminium corpus cum ferro immaculato partium internarum.

· Lata operans dolor: 0-8 vectis pressio, -20°C ad 85°C temperatus.

· Securus instruitur: G 1-1/2" (ISO 228/1) nexus lina.

· Certified Quality: CE, ATEX, CSA pro vexillum et ancipitia locorum probatus

Basic Parameters

Parameter	Specification
Exemplar Number	G353A045
Valvae Type	Via 2/2, Communiter Clausa (NC)
Actus	Solenoid, Longinquus Gubernator Operated
Portus Location	1-1/2" (DN40), G Thread (ISO 228/1)
Orificium Location	52 mm
Flow Coefficiens (Cv/Kv)	53.18 / 46.00
Operans Pressura	0 - 8 talea (0 - 116 psi)
Gubernator Connection	1/4"
Corpus Material	Die-cast Aluminium Alloy
Diaphragma Material	TPEE / NBR / Viton (High-grad rubber)
Temperature operating	-20°C ad 85°C (-4°F ad 185°F)
Media	Mundus, siccus compressus aer & iners gasorum
Pondus	1.0 kg
Praesidium Classis	IP65

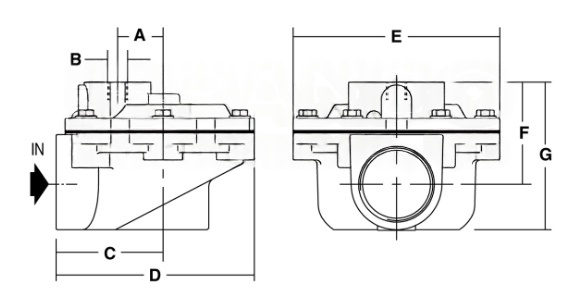

Exemplar No.	A (mm)	B	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	Pondus (kg)
G353A041	-	1/8''	51	89	75	41	64	0.45
G353A042	-	1/8''	51	89	75	41	64	0.40
G353A045	30	1/4''	71	130	136	71	98	1.00

Applications

G353A045 est electio-vexillum industriae ad pulsum venarum purgandum;

· Pulvis Industrial Collectores & Baghouses

· Cement & Processing Mineralis Plantarum

· Potestas Generationis & Coal-Fretus Boilers

· Steel & Metal Fabricatio Facilities

· Pharmaceutical & Food Processing

· Woodworking & Furniture Vestibulum

· Chemical & Plastic Processing

· Aeris pollutio Control Systems

FAQ

1. Quid interest inter A045 et SCG353A045?

Valvae G353A045 est gubernator remotus, dum SCG353A045 est valvae integralis (internus) gubernator. Elige G353A045 cum opus est ad coitum solenoiidum conscendere a coactore pulvere duro ambitu.
