Pulse plunger solenoid valvae
Plunger pulsus solenoid aeris valvae est pulveris remotionem valvae, quod rarissimi compressum aeris per pulsum current. Est available in tres-inch et quatuor inch exempla monstrabit.
Mitte Inquisitionem
depictio producti

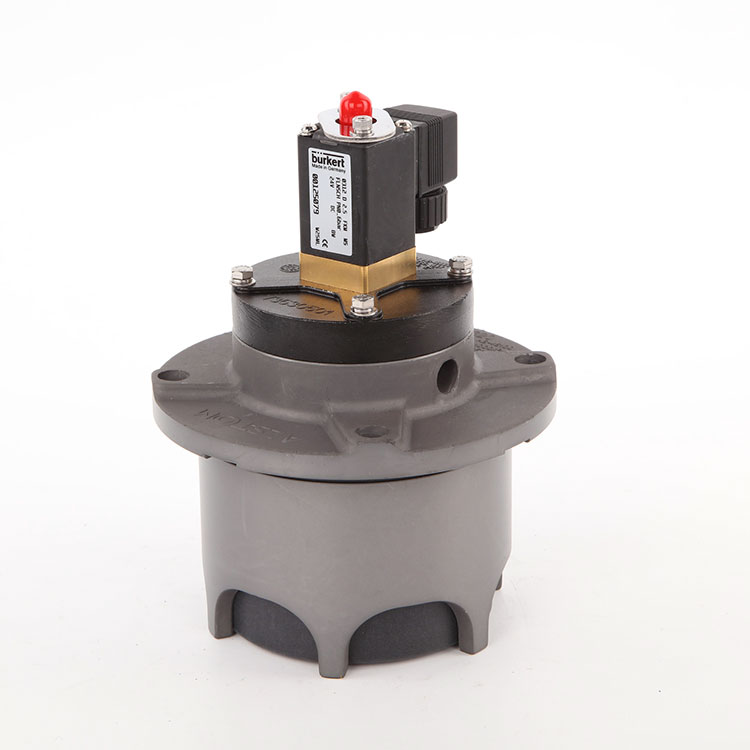

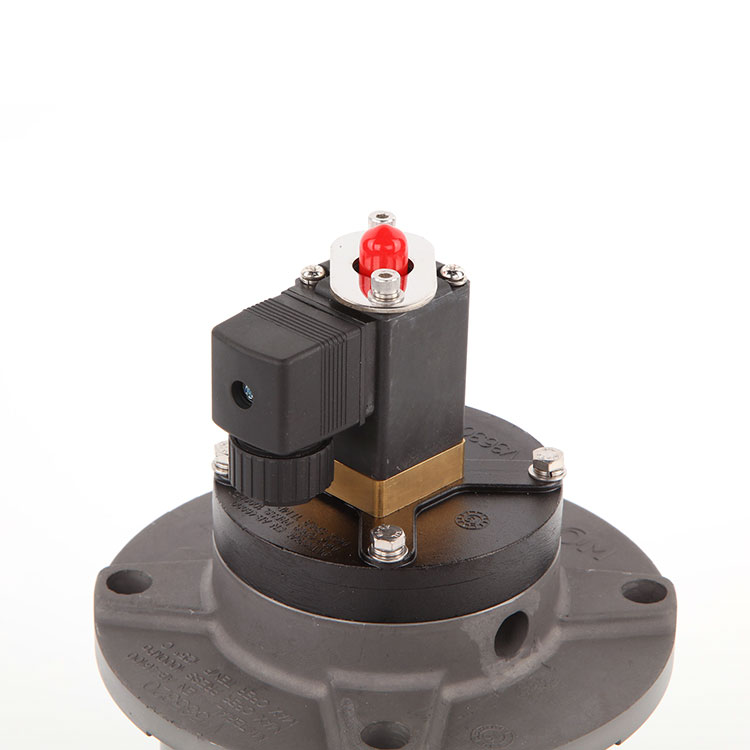

Plunger pulsus solenoid aeris valvae starmachinechina CXXXV est unum genus plunger pulsum solenoid aere valvae, et magnus differentia est non est in eo.
Key Features:
| Pluma | Descriptio |
| Exemplar | V1614718-0301 |
| Magnitudo | IV inch |
| Nominis diameter | Dn100 |
| Conditio | C% Novum |
| Notus | SMCC |
| Qualis | Bonum |
| Features | Dura, princeps euismod |
| Commoda | Securus install |
| Diuturnitas | Longa vita, unus million tempora cycles |
| Usuria | Nam industriae sacculi filter |
| Opus medium | Clean siccis compressum aere |
| Iniectio Tempus (Arteria Width) | 60-100MS |
| Pulsus Intervallum Tempus | ≥60s |
| Sparguntur regio | 120㎡ |
| Nam filter lapides sacculi | XXVII pars |
| Operantes pressura | 0.2-0.6pa |
| Protection Grade | Ip65 |
| SINGULTUM Grade | H |
| KV / CV valorem | 518.85 / 605,5 |
| Praestitus | XXIV menses |
Introductio ad pelagus partes:
Body: It is also called valve house or valve body and this is the main part of the entire plunger pulse solenoid air valve, usually made of a durable material such as aluminium or cast steel, which contains and protects most of the other components, such as plunger, rubber disc and O-rings.
Plumger hoc est mobile, quae moveri potest, et downside, solet ex durabile materiae ut vitrum fabricae vel Ceramic et partes in plunger pulsus solenoidas valvae est control fluxus Gas.
Pulsus Solenoid: Hoc est component ad creare magnetica vis movet ad plunger cum solenoid est energized.
Spring hoc est pars quae plerumque ad auxilium redire ad plunger ad suum originale situ.
Partes Partibus Pulsus Pulsus Solenoid CYMBALON:
In materia de principalis partes plunger pulsus solenoid aeris valvae:
| Pars | Materia |
| CYMBALON | Aluminium Alloy ABC, XII |
| Plungor | Reinforced Nylon LXVI |
| Membrana | Hi in Flexilis |
| Purgamentum disco | Flexilis |
| O-anulus | FRUBRIX |
| Gubernator | Aluminium Alloy ABC, XII |
DIMESION exemplar et ecclesiam:
Alia products de similes plunger pulsus solenoid aere valvae:
| Product Name | Articulus numerus | Pos. No. |
| Starmachinechina CXXXV (24V) | V1614718-0100 | ① |
| Starmachinechina CXXXV (100v, L HZ) | V1614718-0301 | ① |
| Starmachinechina CXXXV (120v, 60Hz) | V1614718-0400 | ① |
| Starmachinechina CXXXV (120v 60Hz Ul-Certified) | V1614718-0700 | ① |
| StarMachinechina CXXXV (Sine Solenoid, Revolving XC °) | V1614718-0800 | 一 |
| Membrana | V4549902-0100 | ② |
| O-circulum (Flus Flexor 64.5 x 3.1) | 8003-5573 | ③ |
| O-circulum (NITRIL 70sh 64.5 x 3.1) | 2136-1422 | ③ |
| O-circulum (CXLIII x 3.1) | 2136-1441 | ④ |
| Gubernator | V3630501-0100 | ⑤ |
| Laminam | V3630524-0100 | ⑥ |
| Plungor | V3629022-0100 | ⑦ |
| Circum Washer (Ss3576-5-200HV FE / ZN25) | 4903-2146 | 一 |
| Purgamentum disco | V3640660-0100 | ⑧ |
| Solenoid CYMBALON (XXIV V DC) | V3611471-0100 | ⑨ |
| Solenoidal CYMBALON (C V, LX HZ) | V3611471-0201 | ⑨ |
| Solenoidal CYMBALON (CX V, L HZ) | V3611471-0300 | ⑨ |
| Solenoidal CYMBALON (CX V, LX HZ) | V3611471-0200 | ⑨ |
| Solenoidal CYMBALON (CXX V, LX HZ) | V3611471-0400 | ⑨ |
| Solenoidal CYMBALON (120v, LX HZ-Ul Certified) | V3640645-0200 | ⑨ |
| Solenoidal CYMBALON (230v, L HZ) | V3611471-0500 | ⑨ |
| Solenoidal CYMBALON (CX V, LX HZ) | V3611471-0200 | ⑨ |
| Solenoidal CYMBALON (CXX V, LX HZ) | V3611471-0400 | ⑨ |
| Solenoidal CYMBALON (120v, LX HZ-Ul Certified) | V3640645-0200 | ⑨ |
| Solenoidal CYMBALON (230v, L HZ) | V3611471-0500 | ⑨ |
Principium operatio de plunger pulsus solenoid aeris valvae
Principium operationis de plunger pulsus solenoid aere valvae est ut sequitur: cum solenoid valvae clauditur, vere pendit in plunger ad imo aeris valvae corporis, claudebant in Gas outlet. Cum solenoidal valvae energized, generat magneticam vim quod vincit vere vi et protrudit plunger sursum, ita aperire plunger pulsus solenoidare aere valvae et permittens gas fluere. Cum solenoidal valvae est de ageret, vere pendit ad plungulae ad imum iterum et plunger pulsus solenoid valvae clauditur.
Package of plunger pulsus solenoid valvae:
| Starmachinechina plunger pulsum solenoid aeris valvae CXXXV quantitas | Lobortis sarcina magnitudine |
| 1pc | 185mm * 195mm * 297mm |
| 2pc | 380mm * 195mm * 297mm |
| 4pc | 380mm * 380mm * 297mm |
| 6pc | 580mm * 380mm * 297mm |
Hoc productum habet Transierunt ATEX et IECEX Dual CREPITUS-probationem Certification, quod est late in calculo-accensus potentia plantarum Desulfurization et pulvis Remotal Systems, et Purusculum Pulvis Remotionem World Campis Systems PowerChop System Hoc est servivit plus quam 2,600 industriae pulvis imperium projects terrarum.
Hot Tags: Plunger pulsus solenoid aeris valvae, plunger pulsus CYMBALON, solenoid Aeris CYMBALIBUS Manufacturer, stella Machina, Pulsus CYMBALON
